Detailed Description

A static class to handle geographic algorithms. This class offers methods to handle lat/lon coordinates, to transform lat/lon coordinates, to compute distances on a sphere or to convert between coordinate systems.

Author: Mathias Bavay

Date: 2015-09-22

#include <CoordsAlgorithms.h>

Public Types
enum	ELLIPSOIDS_NAMES { E_WGS84 , E_WGS72 , E_GRS80 , E_AIRY , E_INTL1924 , E_CLARKE1880 , E_CLARKE1866 , E_GRS67 , E_EVEREST1830 , E_IERS2003 , E_KRASSOVSKY , NONE }
	Keywords for selecting an ellipsoid to use. More...

Static Public Member Functions
static double	dms_to_decimal (const std::string &dms)
	Parse a latitude or longitude It can be formatted as any of the following examples: More...

static std::string	decimal_to_dms (const double &decimal)
	Converts a decimal latitude or longitude to degrees, minutes, seconds It formats its arguments as in the following example: 46°48'03". More...

static void	parseLatLon (const std::string &coordinates, double &lat, double &lon)
	Parse a latitude-longitude pair It can be formatted as any of the following examples: More...

static std::string	printLatLon (const double &latitude, const double &longitude)
	Print a nicely formatted lat/lon in degrees, minutes, seconds. More...

static double	lat_degree_lenght (const double &latitude)
	Lenght of one degree of latitude This returns the lenght in meters of one degree of latitude around the given latitude (ie: latitude-.5, latitude+.5). See https://en.wikipedia.org/wiki/Latitude#The_length_of_a_degree_of_latitude. More...

static double	lon_degree_lenght (const double &latitude)
	Lenght of one degree of longitude This returns the lenght in meters of one degree of longitude around the given latitude (ie: latitude-.5, latitude+.5). See https://en.wikipedia.org/wiki/Latitude#The_length_of_a_degree_of_latitude. More...

static bool	isUTM (const int &epsg)
	Does a given epsg code describe UTM coordinates? More...

static short int	str_to_EPSG (const std::string &coordsystem, const std::string &coordparam)
	returns the epsg code matching a provided string representation For example, when given "CH1903" with empty coordparam, it will return "21781". For "LOCAL" coordinates, it returns IOUtils::snodata. More...

static void	EPSG_to_str (const int &epsg, std::string &coordsystem, std::string &coordparam)
	Build the string representation for a given EPSG code. More...

static void	rotatedToTrueLatLon (const double &lat_N, const double &lon_N, const double &lat_rot, const double &lon_rot, double &lat_true, double &lon_true)
	Convert rotated lat/lon into geographic lat/lon Rotated coordinates are created by moving the North pole by a given offset along latitude and longitude. The goal is to put the equator through the center of the domain of interest, so a lat/lon grid can easily be approximated by a tangential cartesian coordinate system. (see http://www.cosmo-model.org/content/model/documentation/core/default.htm, part I, chapter 3.3 for more) More...

static void	trueLatLonToRotated (const double &lat_N, const double &lon_N, const double &lat_true, const double &lon_true, double &lat_rot, double &lon_rot)
	Convert geographic lat/lon into rotated lat/lon Rotated coordinates are created by moving the North pole by a given offset along latitude and longitude. The goal is to put the equator through the center of the domain of interest, so a lat/lon grid can easily be approximated by a tangential cartesian coordinate system. (see http://www.cosmo-model.org/content/model/documentation/core/default.htm, part I, chapter 3.3 for more) More...

static void	Molodensky (const double &lat_in, const double &lon_in, const double &alt_in, const ELLIPSOIDS_NAMES &ellipsoid_in, double &lat_out, double &lon_out, double &alt_out, const ELLIPSOIDS_NAMES &ellipsoid_out, const double &delta_x=0., const double &delta_y=0., const double &delta_z=0.)
	Molodensky datum transformation. This converts lat/lon from one datum to another (for example, NAD27 to WGS84, or spherical to WGS84). The ellipsoid names (see CoordsAlgorithms::ELLIPSOIDS_NAMES) and delta_x/y/z that describe the datums must be provided (if no deltas are provided, they are assumed to be zeroes). For more information, see https://en.wikipedia.org/wiki/Geographic_coordinate_conversion#Molodensky_transformation or http://www.colorado.edu/geography/gcraft/notes/datum/gif/molodens.gif. More...

static double	cosineDistance (const double &lat1, const double &lon1, const double &lat2, const double &lon2, double &alpha)
	Spherical law of cosine Distance calculation between points in WGS84 (decimal Lat/Long) See http://www.movable-type.co.uk/scripts/latlong.html for more. More...

static void	cosineInverse (const double &lat_ref, const double &lon_ref, const double &distance, const double &bearing, double &lat, double &lon)
	Spherical law of cosine Distance calculation between points in WGS84 (decimal Lat/Long) See http://www.movable-type.co.uk/scripts/latlong.html for more. More...

static double	VincentyDistance (const double &lat1, const double &lon1, const double &lat2, const double &lon2, double &alpha)
	Vincenty Distance calculation between points in WGS84 (decimal Lat/Long) See T. Vincenty, "Closed formulas for the direct and reverse geodetic problems", Journal of Geodesy, 51, 3, 1977, DOI:10.1007/BF02521599, see http://www.springerlink.com/content/y7108u6862473583 for more. More...

static void	VincentyInverse (const double &lat_ref, const double &lon_ref, const double &distance, const double &bearing, double &lat, double &lon)
	Vincenty Inverse calculation giving WGS84 (decimal Lat/Long) position given a start location (lat,lon) a distance and a bearing See T. Vincenty, "Closed formulas for the direct and reverse geodetic problems", Journal of Geodesy, 51, 3, 1977, DOI:10.1007/BF02521599, see http://www.springerlink.com/content/y7108u6862473583 for more. More...

static void	WGS84_to_CH1903 (const double &lat_in, const double &long_in, double &east_out, double &north_out)
	Coordinate conversion: from WGS84 Lat/Long to Swiss grid See https://www.swisstopo.admin.ch/de/karten-daten-online/calculation-services.html in the "Documents" section for more. More...

static void	CH1903_to_WGS84 (const double &east_in, const double &north_in, double &lat_out, double &long_out)
	Coordinate conversion: from Swiss grid to WGS84 Lat/Long See https://www.swisstopo.admin.ch/de/karten-daten-online/calculation-services.html in the "Documents" section for more. More...

static void	WGS84_to_UTM (const double &lat_in, double long_in, const std::string &coordparam, double &east_out, double &north_out)
	Coordinate conversion: from WGS84 Lat/Long to UTM grid. For more, see http://www.oc.nps.edu/oc2902w/maps/utmups.pdf, USGS Bulletin 1532 or http://earth-info.nga.mil/GandG/publications/tm8358.2/TM8358_2.pdf, http://www.uwgb.edu/dutchs/usefuldata/UTMFormulas.HTM or Chuck Gantz (http://www.gpsy.com/gpsinfo/geotoutm/). More...

static void	UTM_to_WGS84 (double east_in, double north_in, const std::string &coordparam, double &lat_out, double &long_out)
	Coordinate conversion: from UTM grid to WGS84 Lat/Long. For more, see http://www.oc.nps.edu/oc2902w/maps/utmups.pdf, USGS Bulletin 1532 or http://earth-info.nga.mil/GandG/publications/tm8358.2/TM8358_2.pdf, http://www.uwgb.edu/dutchs/usefuldata/UTMFormulas.HTM or Chuck Gantz (http://www.gpsy.com/gpsinfo/geotoutm/). More...

static void	WGS84_to_UPS (const double &lat_in, const double &long_in, const std::string &coordparam, double &east_out, double &north_out)
	Coordinate conversion: from WGS84 Lat/Long to Universal Polar Stereographic grid see J. Hager, J. Behensky, B. Drew, THE UNIVERSAL GRIDS: Universal Transverse Mercator (UTM) and Universal Polar Stereographic (UPS), 1989, Defense Mapping Agency, DMATM 8358.2. This is valid above latitudes 84N or above 80S. More...

static void	UPS_to_WGS84 (const double &east_in, const double &north_in, const std::string &coordparam, double &lat_out, double &long_out)
	Coordinate conversion: from Universal Polar Stereographic grid to WGS84 Lat/Long see J. Hager, J. Behensky, B. Drew, THE UNIVERSAL GRIDS: Universal Transverse Mercator (UTM) and Universal Polar Stereographic (UPS), 1989, Defense Mapping Agency, DMATM 8358.2. This is valid above latitudes 84N or above 80S. More...

static void	WGS84_to_PROJ (const double &lat_in, const double &long_in, const std::string &coordparam, double &east_out, double &north_out)
	Coordinate conversion: from WGS84 Lat/Long to proj parameters. More...

static void	PROJ_to_WGS84 (const double &east_in, const double &north_in, const std::string &coordparam, double &lat_out, double &long_out)
	Coordinate conversion: from proj parameters to WGS84 Lat/Long. More...

static int	getUTMZone (const double &latitude, const double &longitude, std::string &zone_out)

static void	parseUTMZone (const std::string &zone_info, char &zoneLetter, short int &zoneNumber)

Member Enumeration Documentation

◆ ELLIPSOIDS_NAMES

enum mio::CoordsAlgorithms::ELLIPSOIDS_NAMES

Keywords for selecting an ellipsoid to use.

Enumerator
E_WGS84	Globally usable WGS84 ellipsoid.
E_WGS72	USA/DoD.
E_GRS80	GRS80 ellispoid, equivalent to WGS84 but used by America and Australia (NAD83)
E_AIRY	Airy ellispoid, UK.
E_INTL1924	International 1924 ellispoid, good for most of Europe.
E_CLARKE1880	Clarke 1880, Africa and France.
E_CLARKE1866	Clarke 1866, used for NAD27 (North America)
E_GRS67	GRS67 ellispoid, good for South America.
E_EVEREST1830	Everest1830 ellipsoid, used for India.
E_IERS2003	IERS2003 ellipsoid.
E_KRASSOVSKY	Krassovsky 1940 ellipsoid, USSR, Russia, Romania.
NONE	spherical earth

Member Function Documentation

◆ CH1903_to_WGS84()

void mio::CoordsAlgorithms::CH1903_to_WGS84	(	const double &	east_in,
		const double &	north_in,
		double &	lat_out,
		double &	long_out
	)

static

Coordinate conversion: from Swiss grid to WGS84 Lat/Long See https://www.swisstopo.admin.ch/de/karten-daten-online/calculation-services.html in the "Documents" section for more.

Parameters

[in]	east_in	easting coordinate (Swiss system)
[in]	north_in	northing coordinate (Swiss system)
[out]	lat_out	Decimal Latitude
[out]	long_out	Decimal Longitude

◆ cosineDistance()

double mio::CoordsAlgorithms::cosineDistance	(	const double &	lat1,
		const double &	lon1,
		const double &	lat2,
		const double &	lon2,
		double &	alpha
	)

static

Spherical law of cosine Distance calculation between points in WGS84 (decimal Lat/Long) See http://www.movable-type.co.uk/scripts/latlong.html for more.

Parameters

[in]	lat1	Decimal Latitude (const double&)
[in]	lon1	Decimal Longitude (const double&)
[in]	lat2	Decimal Latitude (const double&)
[in]	lon2	Decimal Longitude (const double&)
[out]	alpha	average bearing

Returns: distance (double)

◆ cosineInverse()

void mio::CoordsAlgorithms::cosineInverse	(	const double &	lat_ref,
		const double &	lon_ref,
		const double &	distance,
		const double &	bearing,
		double &	lat,
		double &	lon
	)

static

Spherical law of cosine Distance calculation between points in WGS84 (decimal Lat/Long) See http://www.movable-type.co.uk/scripts/latlong.html for more.

Parameters

[in]	lat_ref	Decimal Latitude (const double&)
[in]	lon_ref	Decimal Longitude (const double&)
[in]	distance	Distance in meters (const double&)
[in]	bearing	bearing in degrees, 0 being north (const double&)
[out]	lat	Decimal latitude of target point (double&)
[out]	lon	Decimal longitude of target point (double&)

◆ decimal_to_dms()

std::string mio::CoordsAlgorithms::decimal_to_dms ( const double & decimal )

static

Converts a decimal latitude or longitude to degrees, minutes, seconds It formats its arguments as in the following example: 46°48'03".

Parameters

[in] decimal decimal coordinate to convert

Returns: string containing the formatted coordinate

◆ dms_to_decimal()

double mio::CoordsAlgorithms::dms_to_decimal ( const std::string & dms )

static

Parse a latitude or longitude It can be formatted as any of the following examples:

46° 48' 03" (with or without spaces, decimal or integer numbers) - 46d 48' 03" (with or without spaces, decimal or integer numbers)
46 48' 03" (with spaces, decimal or integer numbers)
48° 48.02'(with or without spaces, decimal or integer numbers)
46d 48.02'(with or without spaces, decimal or integer numbers)
46 48.02'(with spaces, decimal or integer numbers)
46.802°
46.802d
46.802
Parameters

[in] dms string containing the coordinate

Returns
coordinate in decimal

◆ EPSG_to_str()

void mio::CoordsAlgorithms::EPSG_to_str	(	const int &	epsg,
		std::string &	coordsystem,
		std::string &	coordparam
	)

static

Build the string representation for a given EPSG code.

Note: We assume that the ETRS datum is equal to the WGS84 (although there is a .5m difference and growing). Therefore, all ETRS coordinates will be written out as WGS84 coordinates.

Parameters

[in]	epsg	epsg code
[out]	coordsystem	string representation of the coordinate system
[out]	coordparam	string representation of the optional coordinate system parameters (such as zone for utm, etc)

◆ getUTMZone()

int mio::CoordsAlgorithms::getUTMZone	(	const double &	latitude,
		const double &	longitude,
		std::string &	zone_out
	)

static

◆ isUTM()

bool mio::CoordsAlgorithms::isUTM ( const int & epsg )

static

Does a given epsg code describe UTM coordinates?

Parameters

[in] epsg epsg code

Returns: true if this is for UTM coordinates, false otherwise

◆ lat_degree_lenght()

double mio::CoordsAlgorithms::lat_degree_lenght ( const double & latitude )

static

Lenght of one degree of latitude This returns the lenght in meters of one degree of latitude around the given latitude (ie: latitude-.5, latitude+.5). See https://en.wikipedia.org/wiki/Latitude#The_length_of_a_degree_of_latitude.

Parameters

[in] latitude latitude where to perform the computation

Returns: lenght of one degree of latitude

◆ lon_degree_lenght()

double mio::CoordsAlgorithms::lon_degree_lenght ( const double & latitude )

static

Lenght of one degree of longitude This returns the lenght in meters of one degree of longitude around the given latitude (ie: latitude-.5, latitude+.5). See https://en.wikipedia.org/wiki/Latitude#The_length_of_a_degree_of_latitude.

Parameters

[in] latitude latitude where to perform the computation

Returns: lenght of one degree of longitude

◆ Molodensky()

void mio::CoordsAlgorithms::Molodensky	(	const double &	lat_in,
		const double &	lon_in,
		const double &	alt_in,
		const ELLIPSOIDS_NAMES &	ellipsoid_in,
		double &	lat_out,
		double &	lon_out,
		double &	alt_out,
		const ELLIPSOIDS_NAMES &	ellipsoid_out,
		const double &	delta_x = `0.`,
		const double &	delta_y = `0.`,
		const double &	delta_z = `0.`
	)

static

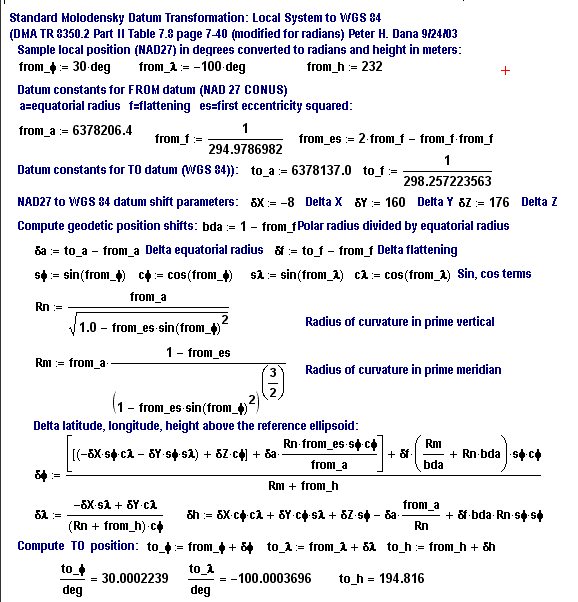

Molodensky datum transformation. This converts lat/lon from one datum to another (for example, NAD27 to WGS84, or spherical to WGS84). The ellipsoid names (see CoordsAlgorithms::ELLIPSOIDS_NAMES) and delta_x/y/z that describe the datums must be provided (if no deltas are provided, they are assumed to be zeroes). For more information, see https://en.wikipedia.org/wiki/Geographic_coordinate_conversion#Molodensky_transformation or http://www.colorado.edu/geography/gcraft/notes/datum/gif/molodens.gif.

Parameters

[in]	lat_in	input latitude (degrees)
[in]	lon_in	input longitude (degrees)
[in]	alt_in	input altitude above sea level
[in]	ellipsoid_in	ellipsoid of the input datum (see CoordsAlgorithms::ELLIPSOIDS_NAMES)
[out]	lat_out	output latitude (degrees)
[out]	lon_out	output longitude (degrees)
[out]	alt_out	output altitude above sea level
[out]	ellipsoid_out	ellipsoid of the output datum (see CoordsAlgorithms::ELLIPSOIDS_NAMES)
[in]	delta_x	Origin shift, x coordinate (default: 0)
[in]	delta_y	Origin shift, y coordinate (default: 0)
[in]	delta_z	Origin shift, z coordinate (default: 0)

◆ parseLatLon()

void mio::CoordsAlgorithms::parseLatLon	(	const std::string &	coordinates,
		double &	lat,
		double &	lon
	)

static

Parse a latitude-longitude pair It can be formatted as any of the following examples:

lat lon (without any spaces in the latitude or longitude string)
lat/lon
(lat;lon)
(lat,lon)
Parameters

[in] coordinates string containing the coordinates

[out] lat parsed latitude

[out] lon parsed longitude

◆ parseUTMZone()

void mio::CoordsAlgorithms::parseUTMZone	(	const std::string &	zone_info,
		char &	zoneLetter,
		short int &	zoneNumber
	)

static

◆ printLatLon()

std::string mio::CoordsAlgorithms::printLatLon	(	const double &	latitude,
		const double &	longitude
	)

static

Print a nicely formatted lat/lon in degrees, minutes, seconds.

Returns: lat/lon

◆ PROJ_to_WGS84()

void mio::CoordsAlgorithms::PROJ_to_WGS84	(	const double &	east_in,
		const double &	north_in,
		const std::string &	coordparam,
		double &	lat_out,
		double &	long_out
	)

static

Coordinate conversion: from proj parameters to WGS84 Lat/Long.

Parameters

	east_in	easting coordinate (Swiss system)
	north_in	northing coordinate (Swiss system)
[in]	coordparam	Extra parameters necessary for the conversion (such as UTM zone, etc)
	lat_out	Decimal Latitude
	long_out	Decimal Longitude

◆ rotatedToTrueLatLon()

void mio::CoordsAlgorithms::rotatedToTrueLatLon	(	const double &	lat_N,
		const double &	lon_N,
		const double &	lat_rot,
		const double &	lon_rot,
		double &	lat_true,
		double &	lon_true
	)

static

Convert rotated lat/lon into geographic lat/lon Rotated coordinates are created by moving the North pole by a given offset along latitude and longitude. The goal is to put the equator through the center of the domain of interest, so a lat/lon grid can easily be approximated by a tangential cartesian coordinate system. (see http://www.cosmo-model.org/content/model/documentation/core/default.htm, part I, chapter 3.3 for more)

Note: To convert South Pole coordinates to North Pole coordinates, multiply the latitude by -1 and add 180 to the longitude.

Parameters

[in]	lat_N	North pole latitude offset
[in]	lon_N	North pole longitude offset
[in]	lat_rot	rotated latitude
[in]	lon_rot	rotated longitude
[out]	lat_true	geographic latitude
[out]	lon_true	geographic longitude

◆ str_to_EPSG()

short int mio::CoordsAlgorithms::str_to_EPSG	(	const std::string &	coordsystem,
		const std::string &	coordparam
	)

static

returns the epsg code matching a provided string representation For example, when given "CH1903" with empty coordparam, it will return "21781". For "LOCAL" coordinates, it returns IOUtils::snodata.

Parameters

[in]	coordsystem	string representation of the coordinate system
[in]	coordparam	string representation of the optional coordinate system parameters (such as zone for utm, etc)

Returns: epsg code

◆ trueLatLonToRotated()

void mio::CoordsAlgorithms::trueLatLonToRotated	(	const double &	lat_N,
		const double &	lon_N,
		const double &	lat_true,
		const double &	lon_true,
		double &	lat_rot,
		double &	lon_rot
	)

static

Convert geographic lat/lon into rotated lat/lon Rotated coordinates are created by moving the North pole by a given offset along latitude and longitude. The goal is to put the equator through the center of the domain of interest, so a lat/lon grid can easily be approximated by a tangential cartesian coordinate system. (see http://www.cosmo-model.org/content/model/documentation/core/default.htm, part I, chapter 3.3 for more)

Note: To convert South Pole coordinates to North Pole coordinates, multiply the latitude by -1 and add 180 to the longitude.

Parameters

[in]	lat_N	North pole latitude offset
[in]	lon_N	North pole longitude offset
[in]	lat_true	geographic latitude
[in]	lon_true	geographic longitude
[out]	lat_rot	rotated latitude
[out]	lon_rot	rotated longitude

◆ UPS_to_WGS84()

void mio::CoordsAlgorithms::UPS_to_WGS84	(	const double &	east_in,
		const double &	north_in,
		const std::string &	coordparam,
		double &	lat_out,
		double &	long_out
	)

static

Coordinate conversion: from Universal Polar Stereographic grid to WGS84 Lat/Long see J. Hager, J. Behensky, B. Drew, THE UNIVERSAL GRIDS: Universal Transverse Mercator (UTM) and Universal Polar Stereographic (UPS), 1989, Defense Mapping Agency, DMATM 8358.2. This is valid above latitudes 84N or above 80S.

Parameters

[in]	east_in	easting coordinate (UTM)
[in]	north_in	northing coordinate (UTM)
[in]	coordparam	UPS zone, either "N" or "S"
[out]	lat_out	Decimal Latitude
[out]	long_out	Decimal Longitude

◆ UTM_to_WGS84()

void mio::CoordsAlgorithms::UTM_to_WGS84	(	double	east_in,
		double	north_in,
		const std::string &	coordparam,
		double &	lat_out,
		double &	long_out
	)

static

Coordinate conversion: from UTM grid to WGS84 Lat/Long. For more, see http://www.oc.nps.edu/oc2902w/maps/utmups.pdf, USGS Bulletin 1532 or http://earth-info.nga.mil/GandG/publications/tm8358.2/TM8358_2.pdf, http://www.uwgb.edu/dutchs/usefuldata/UTMFormulas.HTM or Chuck Gantz (http://www.gpsy.com/gpsinfo/geotoutm/).

Parameters

[in]	east_in	easting coordinate (UTM)
[in]	north_in	northing coordinate (UTM)
[in]	coordparam	UTM zone of the easting/northing
[out]	lat_out	Decimal Latitude
[out]	long_out	Decimal Longitude

◆ VincentyDistance()

double mio::CoordsAlgorithms::VincentyDistance	(	const double &	lat1,
		const double &	lon1,
		const double &	lat2,
		const double &	lon2,
		double &	alpha
	)

static

Vincenty Distance calculation between points in WGS84 (decimal Lat/Long) See T. Vincenty, "Closed formulas for the direct and reverse geodetic problems", Journal of Geodesy, 51, 3, 1977, DOI:10.1007/BF02521599, see http://www.springerlink.com/content/y7108u6862473583 for more.

Parameters

[in]	lat1	Decimal Latitude (const double&)
[in]	lon1	Decimal Longitude (const double&)
[in]	lat2	Decimal Latitude (const double&)
[in]	lon2	Decimal Longitude (const double&)
[in]	alpha	average bearing (double&)

Returns: distance (double)

◆ VincentyInverse()

void mio::CoordsAlgorithms::VincentyInverse	(	const double &	lat_ref,
		const double &	lon_ref,
		const double &	distance,
		const double &	bearing,
		double &	lat,
		double &	lon
	)

static

Vincenty Inverse calculation giving WGS84 (decimal Lat/Long) position given a start location (lat,lon) a distance and a bearing See T. Vincenty, "Closed formulas for the direct and reverse geodetic problems", Journal of Geodesy, 51, 3, 1977, DOI:10.1007/BF02521599, see http://www.springerlink.com/content/y7108u6862473583 for more.

Parameters

[in]	lat_ref	Decimal Latitude (const double&)
[in]	lon_ref	Decimal Longitude (const double&)
[in]	distance	Distance in meters (const double&)
[in]	bearing	bearing in degrees, 0 being north (const double&)
[out]	lat	Decimal latitude of target point (double&)
[out]	lon	Decimal longitude of target point (double&)

◆ WGS84_to_CH1903()

void mio::CoordsAlgorithms::WGS84_to_CH1903	(	const double &	lat_in,
		const double &	long_in,
		double &	east_out,
		double &	north_out
	)

static

Coordinate conversion: from WGS84 Lat/Long to Swiss grid See https://www.swisstopo.admin.ch/de/karten-daten-online/calculation-services.html in the "Documents" section for more.

Parameters

[in]	lat_in	Decimal Latitude
[in]	long_in	Decimal Longitude
[out]	east_out	easting coordinate (Swiss system)
[out]	north_out	northing coordinate (Swiss system)

◆ WGS84_to_PROJ()

void mio::CoordsAlgorithms::WGS84_to_PROJ	(	const double &	lat_in,
		const double &	long_in,
		const std::string &	coordparam,
		double &	east_out,
		double &	north_out
	)

static

Coordinate conversion: from WGS84 Lat/Long to proj parameters.

Parameters

[in]	lat_in	Decimal Latitude
[in]	long_in	Decimal Longitude
[in]	coordparam	Extra parameters necessary for the conversion (such as UTM zone, etc)
[out]	east_out	easting coordinate (target system)
[out]	north_out	northing coordinate (target system)

Note: Using libproj is currently not thread safe (see https://trac.osgeo.org/proj/wiki/ThreadSafety)

◆ WGS84_to_UPS()

void mio::CoordsAlgorithms::WGS84_to_UPS	(	const double &	lat_in,
		const double &	long_in,
		const std::string &	coordparam,
		double &	east_out,
		double &	north_out
	)

static

Coordinate conversion: from WGS84 Lat/Long to Universal Polar Stereographic grid see J. Hager, J. Behensky, B. Drew, THE UNIVERSAL GRIDS: Universal Transverse Mercator (UTM) and Universal Polar Stereographic (UPS), 1989, Defense Mapping Agency, DMATM 8358.2. This is valid above latitudes 84N or above 80S.

Parameters

[in]	lat_in	Decimal Latitude
[in]	long_in	Decimal Longitude
[in]	coordparam	UPS zone, either "N" or "S"
[out]	east_out	easting coordinate (Swiss system)
[out]	north_out	northing coordinate (Swiss system)

◆ WGS84_to_UTM()

void mio::CoordsAlgorithms::WGS84_to_UTM	(	const double &	lat_in,
		double	long_in,
		const std::string &	coordparam,
		double &	east_out,
		double &	north_out
	)

static

Coordinate conversion: from WGS84 Lat/Long to UTM grid. For more, see http://www.oc.nps.edu/oc2902w/maps/utmups.pdf, USGS Bulletin 1532 or http://earth-info.nga.mil/GandG/publications/tm8358.2/TM8358_2.pdf, http://www.uwgb.edu/dutchs/usefuldata/UTMFormulas.HTM or Chuck Gantz (http://www.gpsy.com/gpsinfo/geotoutm/).

Parameters

[in]	lat_in	Decimal Latitude
[in]	long_in	Decimal Longitude
[in]	coordparam	UTM zone to convert to
[out]	east_out	easting coordinate (Swiss system)
[out]	north_out	northing coordinate (Swiss system)

The documentation for this class was generated from the following files:

[in]	coordinates	string containing the coordinates
[out]	lat	parsed latitude
[out]	lon	parsed longitude

Detailed Description

Public Types

Static Public Member Functions

Member Enumeration Documentation

◆ ELLIPSOIDS_NAMES

Member Function Documentation

◆ CH1903_to_WGS84()

◆ cosineDistance()

◆ cosineInverse()

◆ decimal_to_dms()

◆ dms_to_decimal()

◆ EPSG_to_str()

◆ getUTMZone()

◆ isUTM()

◆ lat_degree_lenght()

◆ lon_degree_lenght()

◆ Molodensky()

◆ parseLatLon()

◆ parseUTMZone()

◆ printLatLon()

◆ PROJ_to_WGS84()

◆ rotatedToTrueLatLon()

◆ str_to_EPSG()

◆ trueLatLonToRotated()

◆ UPS_to_WGS84()

◆ UTM_to_WGS84()

◆ VincentyDistance()

◆ VincentyInverse()

◆ WGS84_to_CH1903()

◆ WGS84_to_PROJ()

◆ WGS84_to_UPS()

◆ WGS84_to_UTM()
